Hot Racing STE252

Hot Racing logo
in stock? YES

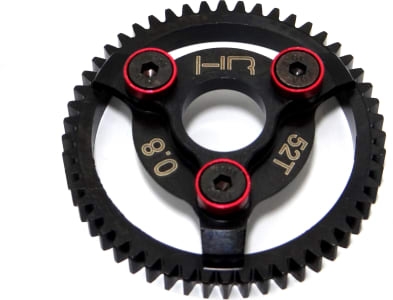

STE252, Steel Spur Gear (52t 32p)(Red) - Traxxas,
Hot Racing STE252
Hot Racing light weight hardened steel 52 tooth, 32 pitch (0.8 Mod) spur gear for the 1/10 Traxxas Bandit, Rustler, 2WD Slash, 2WD Stampede, and Telluride vehicles
FEATURES:
- CNC machined and lightened hardened steel construction
- Replaces stock nylon spur gear
- Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
- Black oxide coated gear for durability and corrosion resistance
- Red anodized countersunk aluminum washers
- High strength hardware
YOU WILL RECEIVE:
- One (1) 52 tooth 32 pitch (0.8 Mod) spur gear
- Three (3) mounting screws
- Three (3) red anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)
REQUIREMENTS:
- Hardened .08 module (32 pitch) steel pinion gear
SPECIFICATIONS:
- Number of Teeth: 52
- Gear Pitch: 32 pitch (0.8 module)
- Mounting Holes: 3
- Tooth Face width: ~5mm
COMMENTS:
- Must use with .08 module (32 pitch) pinion gear
- Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
- Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.


description revised by: SN July 19, 2017
