Hot Racing AON12E01

Hot Racing logo
in stock? YES
Aluminum Hd Gearbox Case Bulkhead Arrma Kraton Outcast
Hot Racing AON12E01

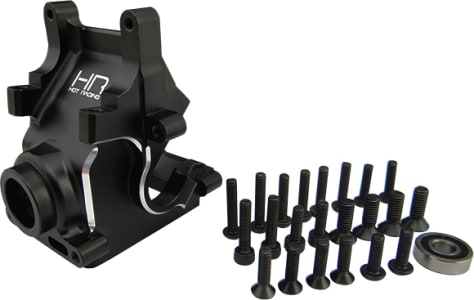

Hot Racing aluminum gearbox case With HD out put bearing for the front or rear of the 1/8 BLX Arrma Kraton, Notorious, Outcast, Senton, Talion, and Typhon. See vehicle model compatibility in comments below.
- Stronger and and stiffer assembly
- Upgrades the stock 5x11x4mm unsealed outer pinion bearing with an oversized 5x13x4mm sealed bearing for a stiffer and stronger drive train
- CNC machined aluminum construction
- Anodized black with machine chamfered edges
- Fits both the front or rear
- Direct fit hop up requires no modification for use
- One (1) gear box case main body
- One (1) 5x13x4mm black rubber sealed ball bearing
- Hardware
- All other parts besides the lower gearbox case, including the stock 8x19x6mm inner pinion bearing
- Assembly and installation per vehicle manual
- Medium thread lock (blue threadlocking compound) on screws
- WIll not work with Felony and Infrection .
- Replaces factory lower gearbox case from Arrma AR310427 or AR310854
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
- LimitLess ARA109011
- Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
- Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silv/org)
- Senton: AR106007, AR102654, AR102673
- Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
- Typhon: AR106001, AR106013, AR106028, ARA106046
description revised by: SN May 6, 2019
